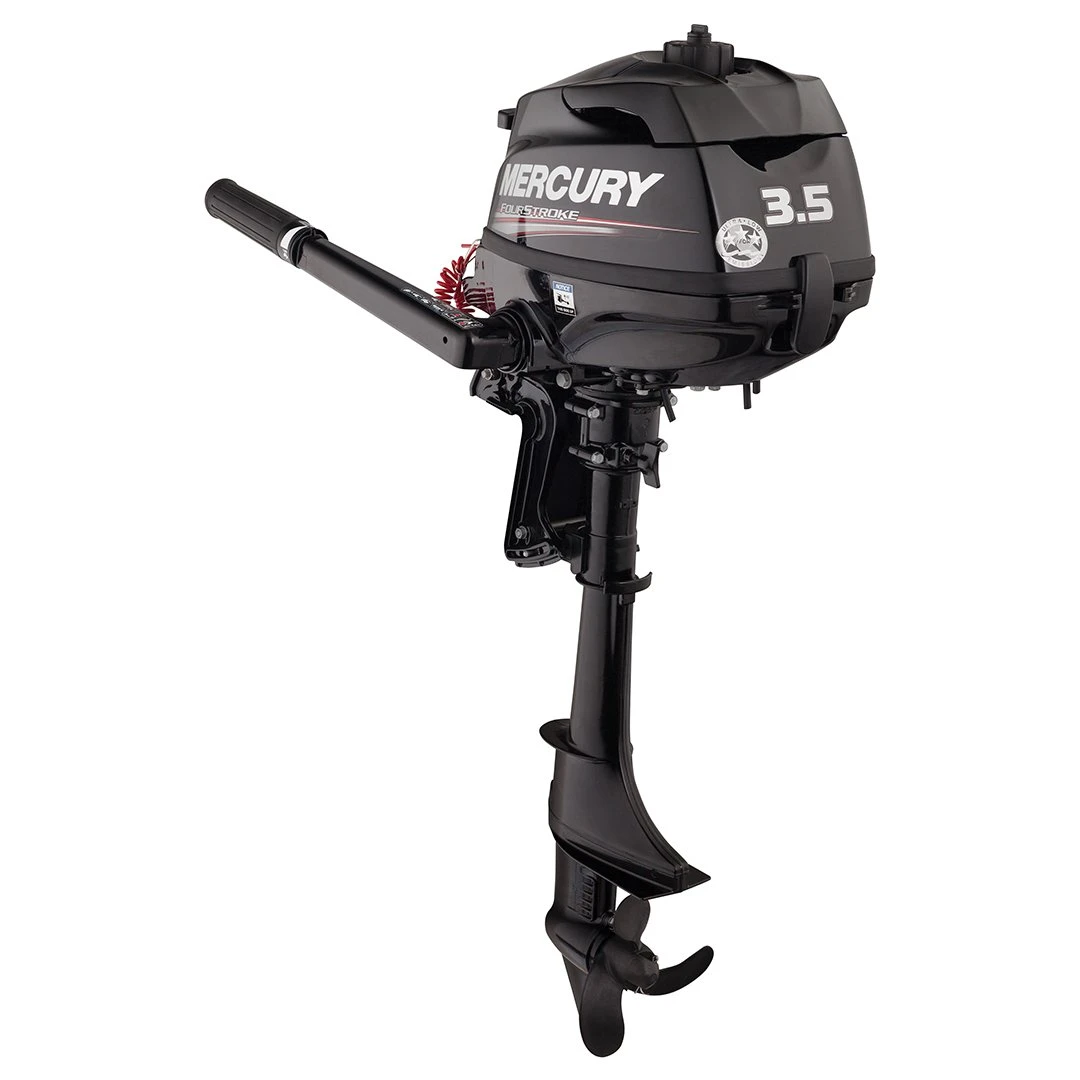

Mercury 3.5 HP 3.5MH Outboard Motor

The Mercury 3.5hp outboard motor features a larger carburetor for increased performance features that set it apart from other outboards in the same class. The Mercury 3.5 outboard engine is a great choice of power for canoes, small tenders and inflatables boats.. At just 41 lbs, Mercury designed the 3.5 HP (3 5 HP) outboard for real portability. The ergonomic carry handle evenly balances the engine for easy transporting. The Mercury 3.5 HP outboard model # 3.5MH is equipped with the 15 inch short shaft, tiller steering and manual start.



• Compact and Lightweight
• Digital CD Ignition System
• High Grade Marine Alloy Construction
• Stainless Steel Water Pump Housing
• Zinc Coated Water Passages
• Rated for Saltwater Use
• Sacrificial Zinc Anodes
• Forward-Neutral Gear Shift
• 360° Steering w/ Tension Feature
• Twist-Grip Throttle with Tension Control
• Integrated Carry Handle
• Thermostat Controlled Water Cooling
• Visual Oil Level Indicator
• Over-Rev Protection
• 4 Trim Level Positions
• Below-The-Water Exhaust
• 1.0 Liter (.30 Gallon) Integral Fuel Tank
• Safety Lanyard Stop Switch
• Owner’s Manual
• Mercury Marine 3-Year Warranty



MODEL	3.5MH
MODEL YEAR	2020
SKU	3.5MH-20
WEIGHT	41.0 lb
MANUFACTURER	Mercury
COUNTRY OF MANUFACTURE	Japan
HORSEPOWER	3.5hp
SHAFT LENGTH	15″ (Short)
STEERING	Tiller
STARTING	Manual
TRIM & TILT	Manual
FUEL DELIVERY	Carburetor
FUEL TANK	Internal
CYLINDER(S)	1
DISPLACEMENT	5.2/85
BORE AND STROKE	2.16 x 1.42 in
FULL THROTTLE RPM RANGE	5000-6000
IGNITION SYSTEM	CDI w/electric spark advance
INDUCTION SCAVENGING	OHV
VALVES PER CYLINDER	2
FUEL TYPE	87 Octane (up to 10% ethanol content)
FUEL TANK / FUEL LINE	0.3 US Gallon (0.95 liter)
OIL TYPE	SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
OIL CAPACITY	10 fl. Oz. (300 ml)
LUBRICATION	Slinger Splashing System
ALTERNATOR	Not available on 3.5hp models (4hp & up only)
COOLING SYSTEM	Water-cooled w/thermostat
SALTWATER RATED	Yes
GEAR RATIO	2.15:1
GEAR SHIFT	Forward-Neutral w/ 360° Steering for Reverse
PROPELLER	7.4″ Diameter x 7.0″ Pitch 3-Blade Composite
