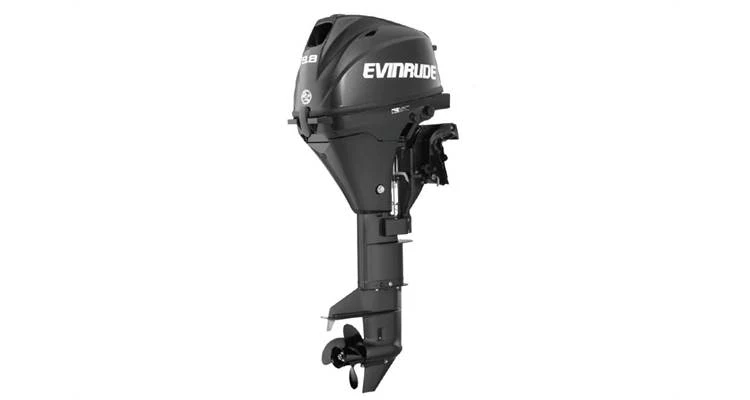

2020 Evinrude Portable Engines 9.8 HP E10PGL4

• Engine Type: 2-cylinder
• Bore x Stroke – in (mm): 2.17 x 1.73 (55 x 44)
• Displacement – cu in (cc): 12.8 (209)
• Gear Ratio: 2.08:1
• Full Throttle RPM Range: 5000-6000 RPM
• Fuel Induction: Carbureted
• Oil Tank Capacity – fl oz (ml): 27 (800)
• Recommended Oil: Evinrude/ Johnson 5W40 Ultra 4-Stroke Oil
• Recommended Fuel: 87 Octane
• Warranty: 3-Year, Non-Declining
• 100% Global Emissions Compliant: EPA 2013 / CARB 3 STAR / European Union

• Color: Graphite
• Shaft Length – in. (mm): 20 (508)
• Steering: Remote
• Controls: Mechanical
• Starting: Electric
• Trim Method: Power Tilt
• Alternator Output: 12V, 145W, 6A
• Model No.: E10PGL4
• Weight – lb (kg): 103.6 (47)





Engine

Engine Type

2-cylinder

Bore x Stroke

2.17 x 1.73 in. (55 x 44 mm)

Displacement

12.8 cu.in. (209 L)

Starting

Electric

Dimensions

Shaft Length

20 in. (508 mm)

Weight

103.6 lb. (47 kg)

General

Trim Method

Power Tilt

Propshaft Horsepower

9.8 hp

Full Throttle Operating Range

5000-6000 RPM

Gear Ratio / Shift

2.08:1

Fuel Induction

Carbureted

Alternator

12V, 145W, 6A

Steering

Remote

Warranty

3-Year, Non-Declining
