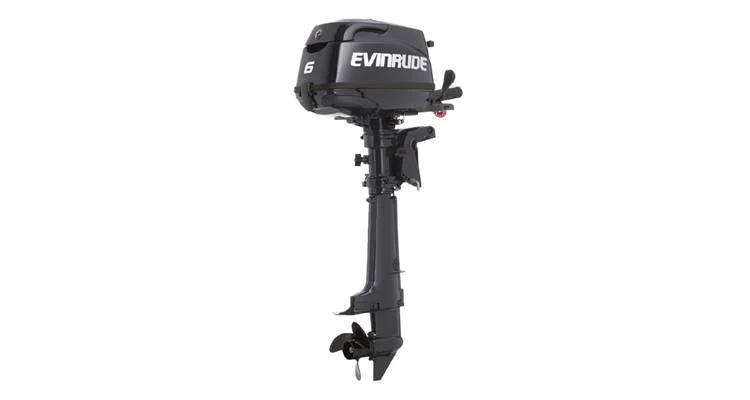

2020 Evinrude Portable Engines 6 HP E6RGL4

• Engine Type: 1-cylinder
• Bore x Stroke – in (mm): 2.32 x 1.77 (59 x 45)
• Displacement – cu in (cc): 7.5 (123)
• Gear Ratio: 2.15:1
• Full Throttle RPM Range: 5000-6000 RPM
• Starting: Rope
• Controls: Tiller Handle
• Fuel Induction: Carbureted
• Steering: Tiller
• Trim Method: Manual
• Oil Tank Capacity – fl oz (ml): 15 (450)
• Recommended Oil: Evinrude/ Johnson 5W40 Ultra 4-Stroke Oil
• Recommended Fuel: 87 Octane
• Warranty: 3-Year, Non-Declining
• 100% Global Emissions Compliant: EPA 2013 / CARB 3 STAR / European Union

• Color: Graphite
• Shaft Length – in. (mm): 20 (508)
• Model No.: E6RGL4
• Weight – lb (kg): 57 (26)





Engine

Engine Type

1-cylinder

Bore x Stroke

2.32 x 1.77 in. (59 x 45 mm)

Displacement

7.5 cu.in. (123 L)

Starting

Rope

Dimensions

Shaft Length

20 in. (508 mm)

Weight

57 lb. (26 kg)

General

Trim Method

Manual

Propshaft Horsepower

6 hp

Full Throttle Operating Range

5000-6000 RPM

Gear Ratio / Shift

2.15:1

Fuel Induction

Carbureted

Steering

Tiller

Warranty

3-Year, Non-Declining
