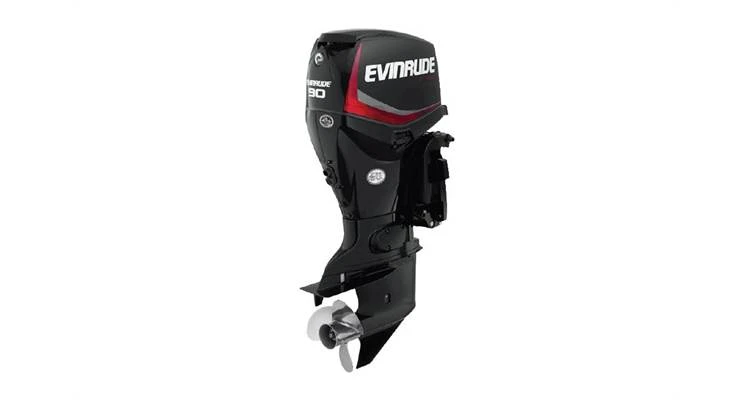

2020 Evinrude E TEC Engines 90 HP E90DGX

• Engine Type: Inline 3-Cylinder E-TEC D.I.
• Bore x Stroke – in (mm): 3.62 x 2.60 (92 x 66)
• Displacement – cu in (cc): 79 (1.29)
• Full Throttle RPM Range: 5000-5500 RPM
• Starting: Electric
• Controls: Mechanical
• Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
• Alternator Output*: 81 Amps Total / 25 Net Dedicated
• Steering: Remote (Tiller accessory)
• Trim Method: Trac-1 Power Trim and Tilt
• Trim Range: -4° to 17°
• Tilt Range: 75°
• Lubrication: Multi-Point Targeted Oiling
• Oil Tank Capacity – qt (L): 3 (2.8)
• Recommended Oil: XPS Marine XD100 / XD50
• Recommended Fuel: 87 Octane
• Warranty: 3-Year, Non-Declining
• 100% Global Emissions Compliant: EPA 2013 / CARB 3 STAR / European Union

• Color: Graphite
• Shaft Length – in. (mm): 25 (635)
• Gear Ratio: 2.25:1
• Model No.: E90DGX
• Weight – lb (kg): 335 (152)



Engine

Engine Type

Inline 3-Cylinder E-TEC D.I.

Bore x Stroke

3.62 x 2.60 in. (92 x 66 mm)

Displacement

79 cu.in. (1.29 L)

Starting

Electric

Dimensions

Shaft Length

25 in. (635 mm)

Weight

335 lb. (152 kg)

General

Trim Method

Trac-1 Power Trim and Tilt

Propshaft Horsepower

90 hp

Full Throttle Operating Range

5000-5500 RPM

Gear Ratio / Shift

2.25:1

Fuel Induction

E-TEC Direct Injection with stratified low RPM combustion mode

Alternator

81 Amps Total / 25 Net Dedicated

Steering

Remote (Tiller accessory)

Warranty

3-Year, Non-Declining
