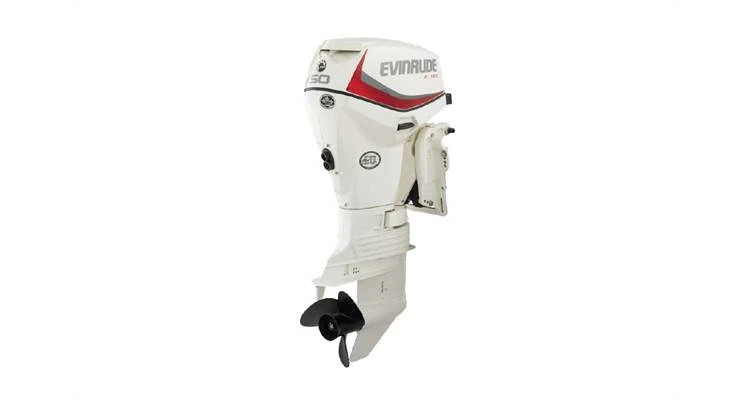

2020 Evinrude E TEC Engines 50 HP E50DSL

• Engine Type: Inline 2-Cylinder E-TEC D.I.
• Bore x Stroke – in (mm): 3.62 x 2.60 (92 x 66)
• Displacement – cu in (cc): 53 (864)
• Gear Ratio: 2.9:1
• Full Throttle RPM Range: 5500-6000 RPM
• Starting: Electric
• Controls: Mechanical
• Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
• Alternator Output*: 81 Amps Total / 25 Net Dedicated
• Trim Method: Power Trim & Tilt
• Trim Range: -4° to 16°
• Tilt Range: 65°
• Lubrication: Multi-Point Targeted Oiling
• Oil Tank Capacity – qt (L): 2 (1.9)
• Recommended Oil: XPS Marine XD100 / XD50
• Recommended Fuel: 87 Octane
• Warranty: 3-Year, Non-Declining
• 100% Global Emissions Compliant: EPA 2013 / CARB 3 STAR / European Union

• Color: White
• Shaft Length – in. (mm): 20 (508)
• Steering: Remote (Tiller acc.)
• Model No.: E50DSL
• Weight – lb (kg): 240 (109)





Engine

Engine Type

Inline 2-Cylinder E-TEC D.I.

Bore x Stroke

3.62 x 2.60 in. (92 x 66 mm)

Displacement

53 cu.in. (864 L)

Starting

Electric

Dimensions

Shaft Length

20 in. (508 mm)

Weight

240 lb. (109 kg)

General

Trim Method

Power Trim & Tilt

Propshaft Horsepower

50 hp

Full Throttle Operating Range

5500-6000 RPM

Gear Ratio / Shift

2.9:1

Fuel Induction

E-TEC Direct Injection with stratified low RPM combustion mode

Alternator

81 Amps Total / 25 Net Dedicated

Steering

Remote (Tiller acc.)

Warranty

3-Year, Non-Declining
