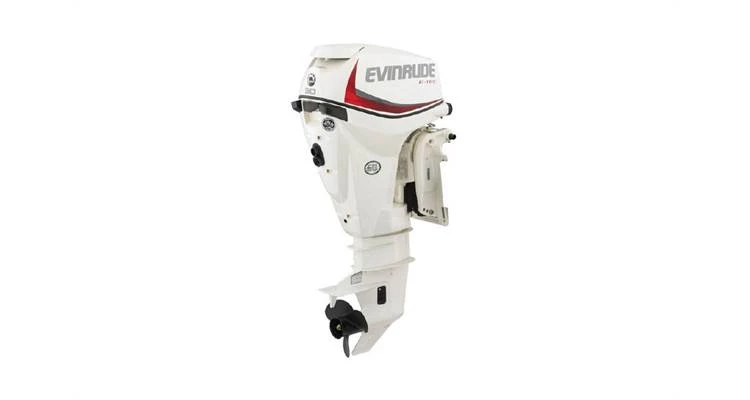

2020 Evinrude E TEC Engines 30 HP E30DPSL

• Engine Type: Inline 2-Cylinder E-TEC D.I.
• Bore x Stroke – in (mm): 2.992 x 2.5 (76 x 64)
• Displacement – cu in (cc): 35 (575)
• Gear Ratio: 2.15:1
• Full Throttle RPM Range: 5500-6000 RPM
• Controls: Mechanical
• Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
• Alternator Output*: 56 Amps Total / 15 Amps Net Dedicated
• Trim Range: -4° to 16°
• Tilt Range: 65°
• Lubrication: Multi-Point Targeted Oiling
• Oil Tank Capacity – qt (L): 1.7 (1.6)
• Recommended Oil: XPS Marine XD100 / XD50
• Recommended Fuel: 87 Octane
• Warranty: 3-Year, Non-Declining
• 100% Global Emissions Compliant: EPA 2013 / CARB 3 STAR / European Union

• Color: White
• Shaft Length – in. (mm): 20 (508)
• Steering: Remote (Tiller avail.)
• Starting: Electric & Rope
• Trim Method: Power Trim & Tilt
• Model No.: E30DPSL
• Weight – lb (kg): 181 (82)





Engine

Engine Type

Inline 2-Cylinder E-TEC D.I.

Bore x Stroke

2.992 x 2.5 in. (76 x 64 mm)

Displacement

35 cu.in. (575 L)

Starting

Electric & Rope

Dimensions

Shaft Length

20 in. (508 mm)

Weight

181 lb. (82 kg)

General

Trim Method

Power Trim & Tilt

Propshaft Horsepower

30 hp

Full Throttle Operating Range

5500-6000 RPM

Gear Ratio / Shift

2.15:1

Fuel Induction

E-TEC Direct Injection with stratified low RPM combustion mode

Alternator

56 Amps Total / 15 Amps Net Dedicated

Steering

Remote (Tiller avail.)

Warranty

3-Year, Non-Declining
