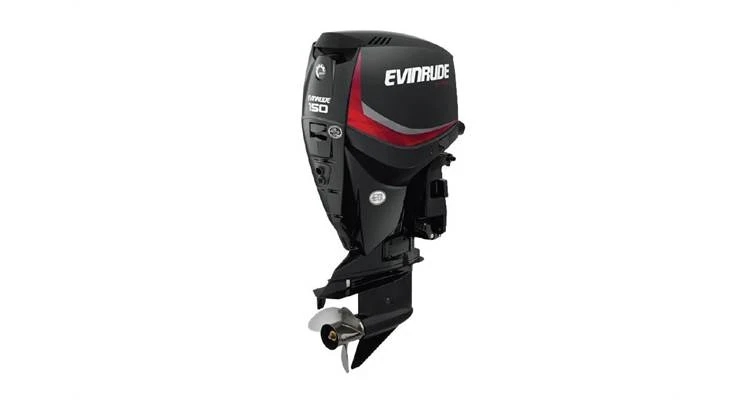

2020 Evinrude E TEC Engines 150 HP E150DGL

• Engine Type: V6 60° E-TEC D.I.
• Bore x Stroke – in (mm): 3.62 x 2.60 (92 x 66)
• Displacement – cu in (L): 158.2 (2.6)
• Full Throttle RPM Range: 5400-6000 RPM
• Starting: Electric
• Controls: Mechanical
• Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
• Alternator Output*: 133 Amps Total / 50 Net Dedicated
• Steering: Remote
• Trim Method: FasTrak™ Power Trim and Tilt
• Trim Range: -6° to 15°
• Tilt Range: 75°
• Lubrication: Multi-Point Targeted Oiling
• Oil Tank Capacity – gal (L): Accessory 1.8 (6.8) 3 (11.3) & 10 (37.85) Tank Available
• Recommended Oil: XPS Marine XD100 / XD50
• Recommended Fuel: 87 Octane
• Warranty: 3-Year, Non-Declining
• 100% Global Emissions Compliant: EPA 2013 / CARB 3 STAR / European Union

• Installation: Single
• Color: Graphite
• Shaft Length – in. (mm): 20 (508)
• Model No.: E150DGL
• Weight – lb (kg): 418 (190)
• Gear Ratio: 1.86:1





Engine

Engine Type

V6 60° E-TEC D.I.

Bore x Stroke

3.62 x 2.60 (92 x 66)

Displacement

158.2 (2.6)

Starting

Electric

Dimensions

Shaft Length

20 in. (508 mm)

Weight

418 lb. (190 kg)

General

Trim Method

FasTrak™ Power Trim and Tilt

Propshaft Horsepower

150 hp

Full Throttle Operating Range

5400-6000 RPM

Gear Ratio / Shift

1.86:1

Fuel Induction

E-TEC Direct Injection with stratified low RPM combustion mode

Alternator

133 Amps Total / 50 Net Dedicated

Steering

Remote

Warranty

3-Year, Non-Declining
