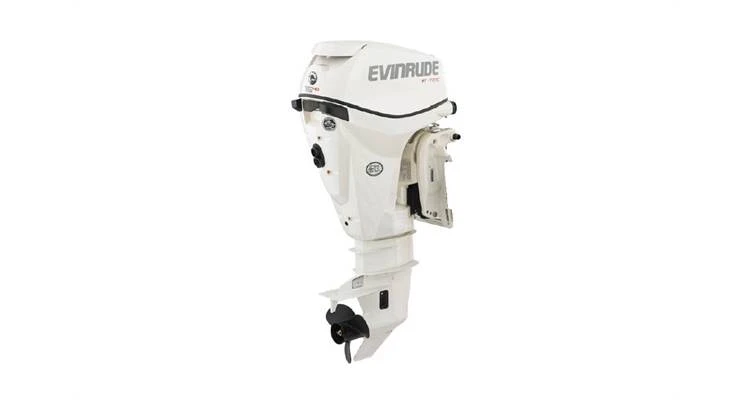

2020 Evinrude E TEC Engines 15 H.O. E15HPSX

• Engine Type: Inline 2-Cylinder E-TEC D.I.
• Bore x Stroke – in (mm): 2.992 x 2.5 (76 x 64)
• Displacement – cu in (cc): 35 (575)
• Gear Ratio: 2.15:1
• Full Throttle RPM Range: 5000-5500 RPM
• Starting: Electric and Rope
• Controls: Mechanical
• Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
• Alternator Output*: 56 Amps Total / 15 Amps Net Dedicated
• Trim Method: High Speed Power Tilt
• Trim Range: -6° to 15°
• Tilt Range: 75°
• Lubrication: Multi-Point Targeted Oiling
• Oil Tank Capacity – qt (L): 1.7 (1.6)
• Recommended Oil: XPS Marine XD100 / XD50
• Recommended Fuel: 87 Octane
• Warranty: 3-Year, Non-Declining
• 100% Global Emissions Compliant: EPA 2013 / CARB 3 STAR / European Union

• Color: White
• Shaft Length – in. (mm): 25 (635)
• Steering: Remote (Tiller avail.)
• Model No.: E15HPSX
• Weight – lb (kg): 184 (84)





Engine

Engine Type

Inline 2-Cylinder E-TEC D.I.

Bore x Stroke

2.992 x 2.5 in. (76 x 64 mm)

Displacement

35 cu.in. (575 L)

Starting

Electric and Rope

Dimensions

Shaft Length

25 in. (635 mm)

Weight

184 lb. (84 kg)

General

Trim Method

High Speed Power Tilt

Propshaft Horsepower

15 hp

Full Throttle Operating Range

5000-5500 RPM

Gear Ratio / Shift

2.15:1

Fuel Induction

E-TEC Direct Injection with stratified low RPM combustion mode

Alternator

56 Amps Total / 15 Amps Net Dedicated

Steering

Remote (Tiller avail.)

Warranty

3-Year, Non-Declining
