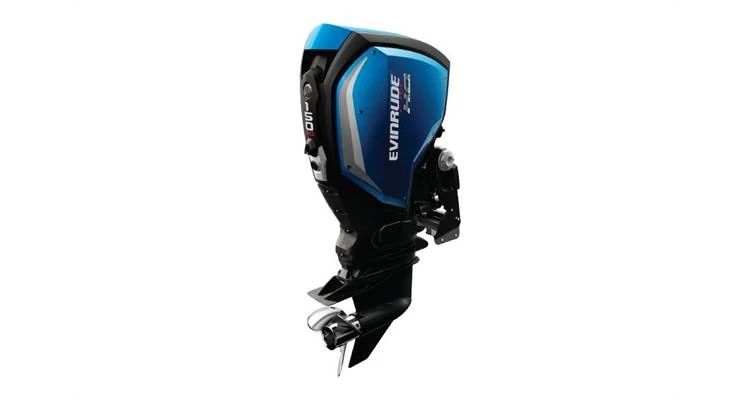

2019 Evinrude E TEC G2 Engines 150 H.O. C150FXH

• All Torque, No Compromise: The precisely powerful E-TEC G2. Direct injection optimizes all elements of how fuel is delivered into the cylinder and combusted fuel is removed, creating the most efficient engine on the water today. By using advanced computer software designed to analyze this combustion process, the Evinrude E-TEC G2 can achieve up to 30% more torque.
• Evinrude Intelligent Piloting System: All Evinrude E-TEC G2 engines have been designed to make boating easy and intuitive. The Evinrude Intelligent Piloting System is a suite of integrated engine features that instills confidence in all boaters, seasoned and novice alike.
• Water-Friendly. Fuel Friendly. Family Friendly: Run the cleanest outboard on the planet, period. The PurePower Combustion of an Evinrude E-TEC G2 is so clean burning that its reportable emissions are lower than any other engine in its class. Not just clean, but lean too. With up to 15% better fuel efficiency, no competitor takes you further on a tank of fuel.

• Engine Model: C150FXH
• Engine Type: V6 66° E-TEC D.I.
• Bore x Stroke – in (mm): 3.386 x 3.100 (86 x 79)
• Displacement – cu in (cc) L: 167 (2744) 2.7L
• Gear Ratio: 2.17:1
• Full Throttle RPM Range: 5400-6000 RPM
• Weight – lbs (kg): 541 (245)
• Starting: Electric
• Controls: iControl Digital Shift & Throttle
• Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
• Alternator Output*: 133 Amps Total / 50 net Dedicated / 14 amps @ idle
• Steering: Integrated Hydraulic Steering / iSteer Dynamic Power Steering
• Trim Method: Power Trim & Tilt
• Trim Range: -6° to 15°
• Tilt Range: 81°
• Shaft Length – in (mm): 25 (635)
• Lubrication: Multi-Point Targeted Oiling
• Oil Tank Capacity – gal (L): On-Engine 3 (11.4) / Accessory 1.8 (6.8), 3 (11.3) & 10 (37.85)
• Recommended Oil: Evinrude/ Johnson XD-100 Oil
• Recommended Fuel: 87 Octane
• Warranty: 5-Year Engine** / 5-Year Corrosion
• Emissions Compliance: EPA 2013 / CARB 3 STAR / European Union
• Mounting Centers – in (mm): Minimum 26 (660)
• Color: Slate Gray with over 400 Color Panel Options
• Steering Angle: +/- 32°
• Integrated Features: Dual Axis Rigging / iTrim



Engine

Engine Type

V6 66 deg. E-TEC D.I.

Bore x Stroke

3.386 x 3.100 in. (86 x 79 mm)

Displacement

167 cu.in. (2744cc) 2.7L

Starting

Electric

Dimensions

Shaft Length

25 in. (635 mm)

Weight

541 lb. (245 kg)

General

Trim Method

Power Trim & Tilt

Propshaft Horsepower

150 hp

Full Throttle Operating Range

5400-6000 rpm

Gear Ratio / Shift

2.17:1

Fuel Induction

E-TEC Direct Injection with stratified low RPM combustion mode

Alternator

133 Amps Total / 50 net Dedicated / 14 amps @ idle

Steering

Integrated Hydraulic Steering / iSteer Dynamic Power Steering

Warranty

5-Year Engine / 5-Year Corrosion
